| MODEL | YFMB-720 L |
| Max. laminating width | 680 mm |
| Max. sheet | 680 x 1194mm |
| Min. sheet | 210x 297mm |
| Paper thickness | 80 ~ 450 gsm |
| Bopp thickness | 10~ 25μm |
| Max. film roll diameter | φ320 mm |
| Max. film roll diameter | φ300 mm |
| Power required | 14 kw ( 380V AC3Φ) |
| energy consumption | 6kw / h |
| Installed power | 80 kVA |
| Laminating speed | 5 ~40 m/min |
| Dimension(L x W x H) | 3500 x 1500 x 1300 mm |
| Weight machine | 1300 kgs |
PT Lancar Jaya Bersama
Laminating Machine

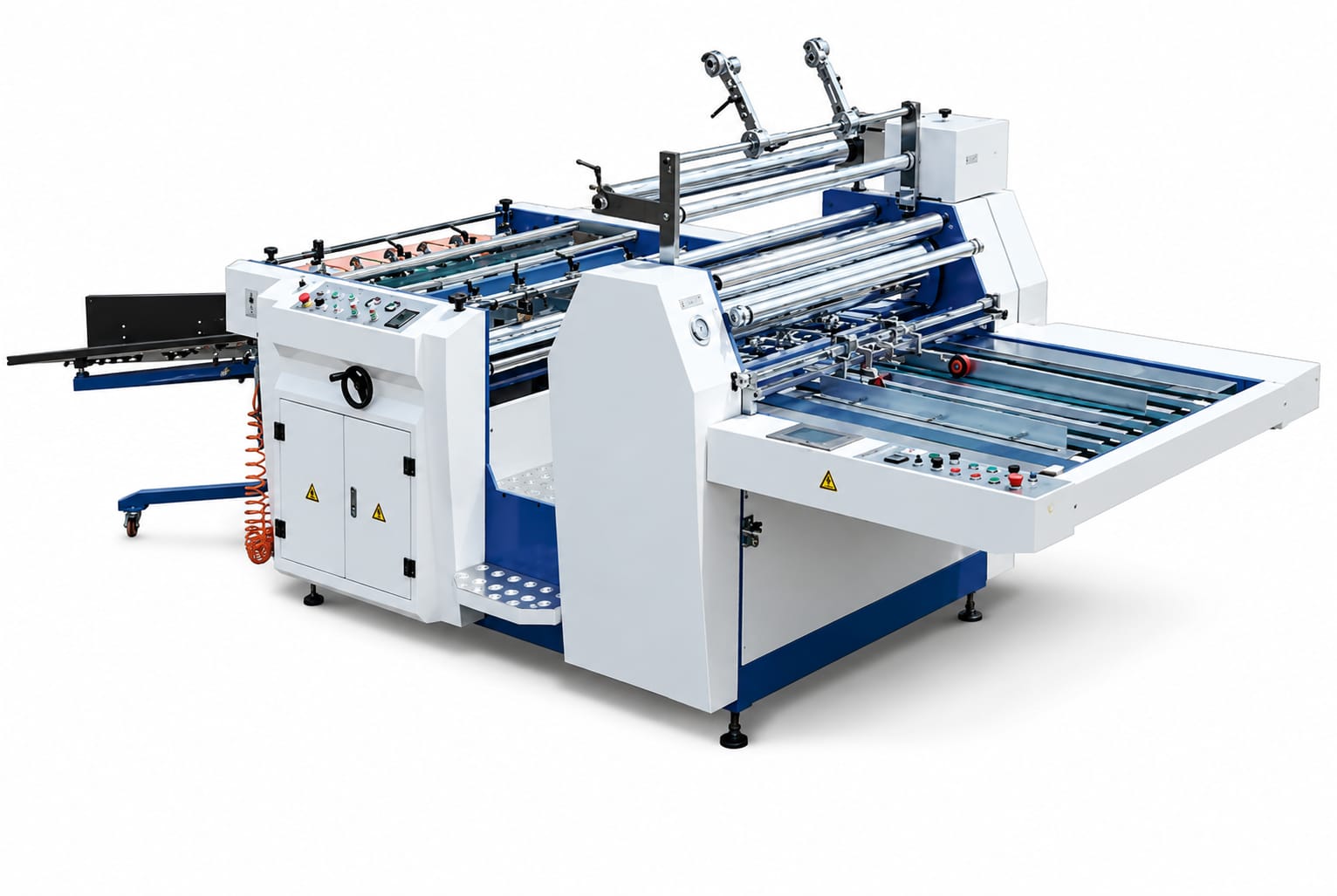

YFMB-720L SEMI-AUTOMATIC LAMINATING MACHINE
