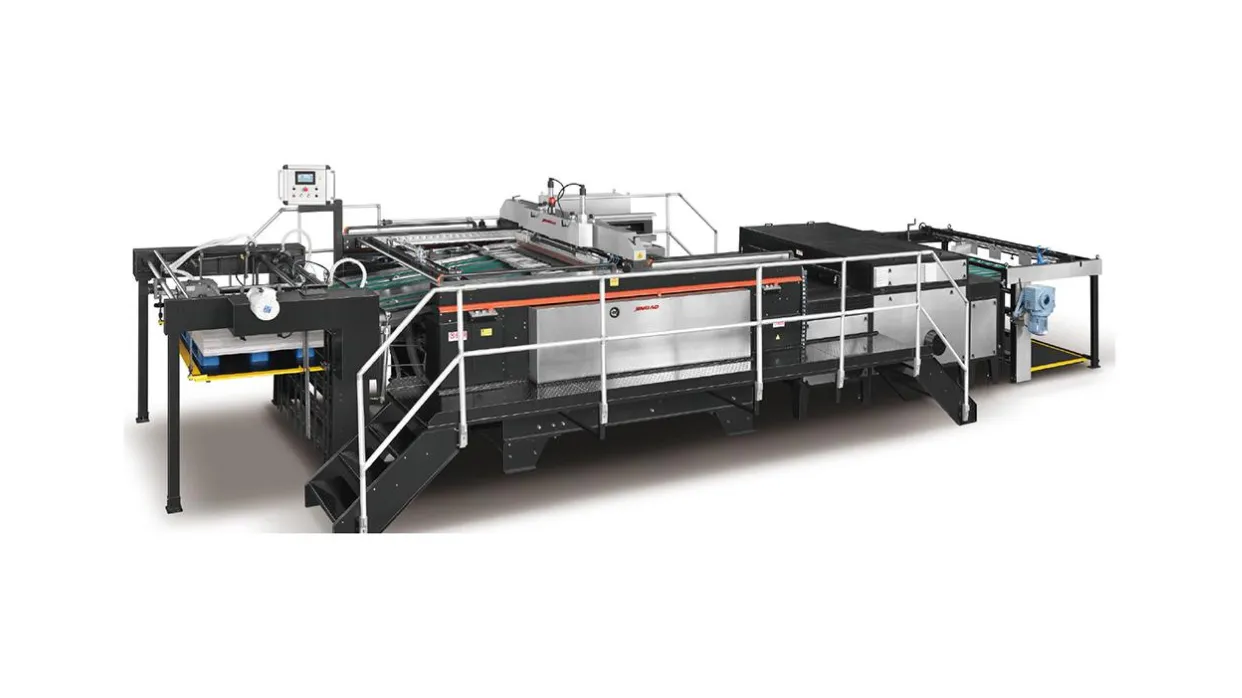

JB-1450A is designed from Europe, with all the high top level technology of screen printing, the classic pneumatic squeegee system, screen plate compensation mechanism,assistant receiving part, screen frame go down and movement mechanism which all are the patented technologies.lt is not only big but also make your production with infinite possibilities.
Specifications
Model | JB-1450A |
Max. Substrate size | 1450X1050mm2 |
Min. Substrate size | 700X460mm2 |
Max. Printing size | 1450X1040mm2 |
Frame size | 1900X1830mm2 |
Substrate thickness | 0.1-3.0mm |
Printing speed | 200-2000sph |
Installation power | 3P 380V 50Hz 20.5kw |
Total weight | 9000kg |
Overall size | 7250x4150x2500mm |
